Relative Paths, Repository File Reference • 2022-Aug-08 In release 8.2.07 documentation there is a change, relative path file references had been unsupported, but then doc states that it is supported. An example: `-INCLUDE ./chart1.fex` This is a repository feature, not supported in the reporting server. The included fex is in the same repository folder as the fex with the include. The documentation has been improved to describe the difference between file references within the repository versus file references on the repository. Developing Reporting Applications, page 402
Save variables to a file • 2022-Jul-20 The following code can be used to write out variables and values to a file. It could be useful for debugging. For example, use it in a procedure that populates valules in a dropdown when the values don't seem to be appearing in the dropdown. The file gets written out to the foccache application directory with the name of the fex that created it and date time stamp in the name of the created file. -DEFAULTH variables and values are not included. `-SET &Filename = TOKEN(&FOCFEXNAME,'.',1); -SET &Filedttm = TOKEN(&Filename,'/',-1) \|\| EDIT(&DATEHYYMDS,'_9999$99$99_$99$99$99.fex') ; -? & SAVE foccache/&Filedttm.EVAL`

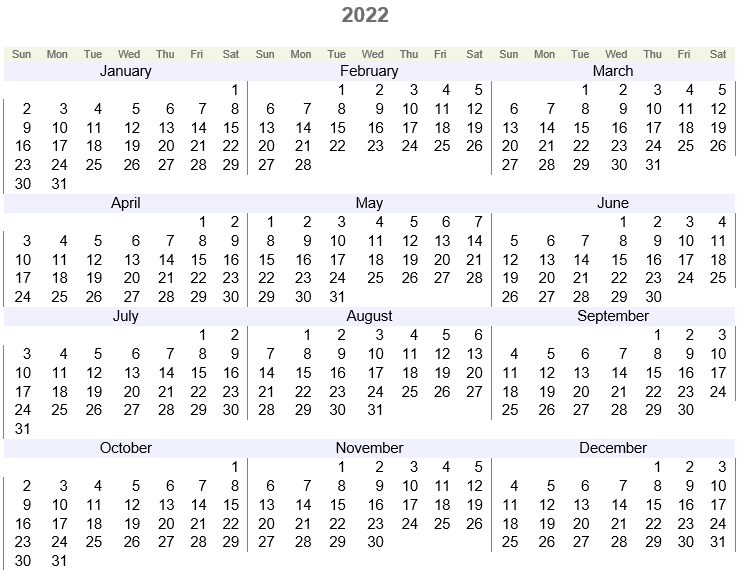

Calendar report • 2022-July-08 Using SQL CREATE, MODIFY FILE, -REPEAT, ACROSS, several date data types, and report styling, all working together, a nice calendar for the current year can be produced. Here is the code: -SET &Date = &DATEYY \| '0101'; -SET &End = &DATEYY \| '1231'; -SET &i = 1; SQL CREATE TABLE calendar (KEY INTEGER ,DATE_YYMD DATE); END MODIFY FILE calendar MATCH KEY ON MATCH REJECT ON NOMATCH INCLUDE DATA -REPEAT ENDREPEAT WHILE &Date LE &End; &i,'&Date',$ -SET &i = &i + 1; -SET &Date = AYMD(&Date, 1, 'I8YYMD'); -ENDREPEAT END SET NODATA=' ',PAGE=NOLEAD,ACROSSLINE=SKIP,LINES=899,HTMLCSS=ON DEFINE FILE calendar DATE_W/w = DATE_YYMD ; DATE_wt/wt = DATE_YYMD ; DATE_D/D = DATE_YYMD ; DATE_Mtr/Mtr = DATE_YYMD ; DATE_Q/Q = DATE_YYMD ; DATE_YYQ/YYQ = DATE_YYMD ; DATE_W2/I1 = IF DATE_W EQ 7 THEN 0 ELSE DATE_W ; DATE_A8YYMD/A8YYMD = DATE_YYMD ; DATE_A4/A4 = EDIT(DATE_A8YYMD,'$$$$9999') ; Week_of_Month/I2 = IF LAST DATE_Mtr NE DATE_Mtr THEN 1 ELSE IF DATE_W EQ 7 THEN Week_of_Month + 1 ELSE Week_of_Month ; Month_of_Quarter/I2 = IF LAST DATE_Q NE DATE_Q THEN 1 ELSE IF LAST DATE_Mtr EQ DATE_Mtr THEN Month_of_Quarter ELSE Month_of_Quarter + 1 ; END TABLE FILE calendar "&DATEYY" SUM DATE_D AS '' COMPUTE M3/Mtr = DATE_Mtr+2; NOPRINT COMPUTE M2/Mtr = DATE_Mtr+1; NOPRINT DATE_YYMD NOPRINT DATE_Mtr NOPRINT DATE_W NOPRINT BY DATE_YYQ NOPRINT BY Week_of_Month NOPRINT ACROSS Month_of_Quarter NOPRINT ACROSS DATE_W2 NOPRINT ACROSS DATE_wt AS '' ON DATE_YYQ SUBHEAD "<DATE_Mtr<M2<M3" ON TABLE SET STYLE * type=report, font=arial, size=11,$ type=heading, size=16, color=rgb(110 110 110), justify=center, style=bold,$ type=acrossvalue, size=8, color=rgb(110 110 110), backcolor=rgb(245 245 230),$ type=subhead, backcolor=rgb(240 240 255), justify=center,headalign=body,$ type=subhead, item=1, colspan=7,$ type=subhead, item=2, colspan=7,$ type=subhead, item=3, colspan=7,$ type=data, acrosscolumn=date_d, border-left=light, border-color=gray, when=DATE_W eq 7,$ type=data, acrosscolumn=date_d, border-RIGHT=light, border-color=gray, when=DATE_W eq 6,$ ENDSTYLE END
Trigonometric functions • 2022-July-01 As early as version WF 9.0.0, trigonometric functions have been added to the function library. Additionally, functions for converting between degrees and radians have been added and a function for returning the value of 𝜋. PI Return the constant pi SIN Return the sine of an angle in radians COS Return the cosine of an angle in radians TAN Return the tangent of an angle in radians COT Return the cotangent of an angle in radians ACOS Return an angle in radians given its cosine ASIN Return an angle in radians given its sine ATAN Return an angle in radians given its tangent ATAN2 Return an angle in radians given the coordinates of its tangent DEGREES Convert radians to degrees RADIANS Convert degrees to radians
Date-time system variables • 2022-June-23 There are a number of date and time system variables. In general any system variable following this pattern: `&DATEfmt or &DATXfmt` where fmt is any date time format that could appear as a field format: `COMPUTE SALESDATE/fmt` as documented in Describing Data with WebFOCUS Language Date Formats and Date-Time Formats. In some cases a particular output can be achieved with two variables used together. &DATEMt = Jun &DATEYY &DATEMt = 2022 Jun &DATEYY &DATEMtr = 2022 June &DATEYYBMtBD = 2022 Jun 23 &DATEYYBMtBD = Jun 23 2022 &DATEtrMDYY = June 23, 2022 &DATEWtMtrDYY = THU, June 23 2022 &DATEHMDYY = 06/23/2022 &DATEM = 06 &DATED = 23 &DATEQ = Q2 &DATEYYQ = 2022 Q2 &DATEQYY = Q2 2022 &DATEW = 4 &DATEWt = Thu &DATEWR = THURSDAY &DATEWtr = Thursday &DATEYY = 2022 &DATEH6 = 202206 &DATEYYMD = 2022/06/23 &DATEHHA = 06PM &DATEHHIA = 06:50PM &DATEHHIb = 06:50 pm &DATEHHISb = 06:50:43 pm &DATEHHISB = 06:50:43 PM &DATEHHa = 06pm &DATEHHB = 06 PM &DATEHHb = 06 pm &DATEHIS = 50:43 &DATEHHIS = 18:50:43 &DATE = 06/23/22 &DATEHYYMDI = 2022/06/23 18:50 &DATEHMDYYS = 06/23/2022 18:50:43 &DATEHYYMDIB = 2022/06/23 6:50 PM &DATEHYYMDIa = 2022/06/23 6:50pm &DATEHYYMDIA = 2022/06/23 6:50PM &DATEHYYMDSA = 2022/06/23 6:50:43PM &DATEHYYMDSB = 2022/06/23 6:50:43 PM &DATEHYYMDSb = 2022/06/23 6:50:43 pm &DATEHMDYYS = 06/23/2022 18:50:43 &DATXtrMDYY&DATEHHIA = June 23, 2022 06:50PM &DATXtrMDYY&DATEHHIa = June 23, 2022 06:50pm &DATXtrMDYY&DATEHHIB = June 23, 2022 06:50 PM &DATXtrMDYY&DATEHHIb = June 23, 2022 06:50 pm &DATXtrMDYY&DATEHHISA = June 23, 2022 06:50:43PM &DATXtrMDYY&DATEHHISa = June 23, 2022 06:50:43pm &DATXtrMDYY&DATEHHISB = June 23, 2022 06:50:43 PM &DATXtrMDYY&DATEHHISb = June 23, 2022 06:50:43 pm
Millions, billions, etc. datatypes • 2022-June-02 With some newer field formats, fields can be displayed in millions or billions and many other formats. This example from the Describing Data With WebFOCUS® Language, Page 127 shows how. `DEFINE FILE GGSALES NEWDOLL/D12.2 = DOLLARS * 100; END TABLE FILE GGSALES SUM DOLLARS NEWDOLL/D12.2nM AS 'Millions' NEWDOLL/D12.2nG AS 'Billions' BY CATEGORY ON TABLE SET PAGE NOLEAD ON TABLE SET STYLE * GRID=OFF,$ ENDSTYLE END` The full range of formats is described in the following table: WebFOCUS Format English Name Prefix Code Size Example American / British yotta nY 1024 1000000000000000000000000 septillion / quadrillion zetta nZ 1021 1000000000000000000000 sextillion / trilliard exa nE 1018 1000000000000000000 quintillion / trillion peta nP 1015 1000000000000000 quadrillion / billiard tera nT 1012 1000000000000 trillion / billion giga nG 109 1000000000 billion / milliard mega nM 106 1000000 million kilo nK 103 1000 thousand milli nm 10(-3) 0.001 thousandth micro nu 10(-6) 0.000001 millionth nano nn 10(-9) 0.000000001 billionth / milliardth pico np 10(-12) 0.000000000001 trillionth / billionth femto nf 10(-15) 0.000000000000001 quadrillionth / billiardth atto na 10(-18) 0.000000000000000001 quintillionth / trillionth zepto nz 10(-21) 0.000000000000000001 sextillionth / trilliardth yocto ny 10(-24) 0.000000000000000000000001 septillionth / quadrillionth
Trace SQL • 2022-June-01 The following SET statements can be used in a fex show the SQL statement(s) created to pull data from a relational database. SET XRETRIEVAL = OFF SET MESSAGE = OFF SET TRACEOFF = ALL SET TRACEON = STMTRACE//CLIENT SET TRACEON = SQLAGGR//CLIENT SET TRACESTAMP = OFF SET TRACEWRAP = 100 SET TRACEUSER = ON The SET XRETIRIEVAL=OFF will suppress data retrieval from the database. The SET MESSAGE=OFF shows the sql trace code without having to click on the Blue "No Data" message.
Handy documentation links • 2022-April-30 Use this page https://webfoc.us for ready access to WF documentation links, Search links, video links and other resoures for the WF developer.
